Utility-Grade AC Combiner Panels for Commercial & Utility-Scale Solar
Agilitech AC Combiner Panels are engineered to aggregate multiple inverter outputs into a single, code-compliant point of interconnection for commercial and utility-scale solar and energy storage systems. Designed for projects above 250 kW, these panels deliver utility-grade performance, configurable ratings, and predictable lead times from a California-based manufacturing footprint.
Product Overview

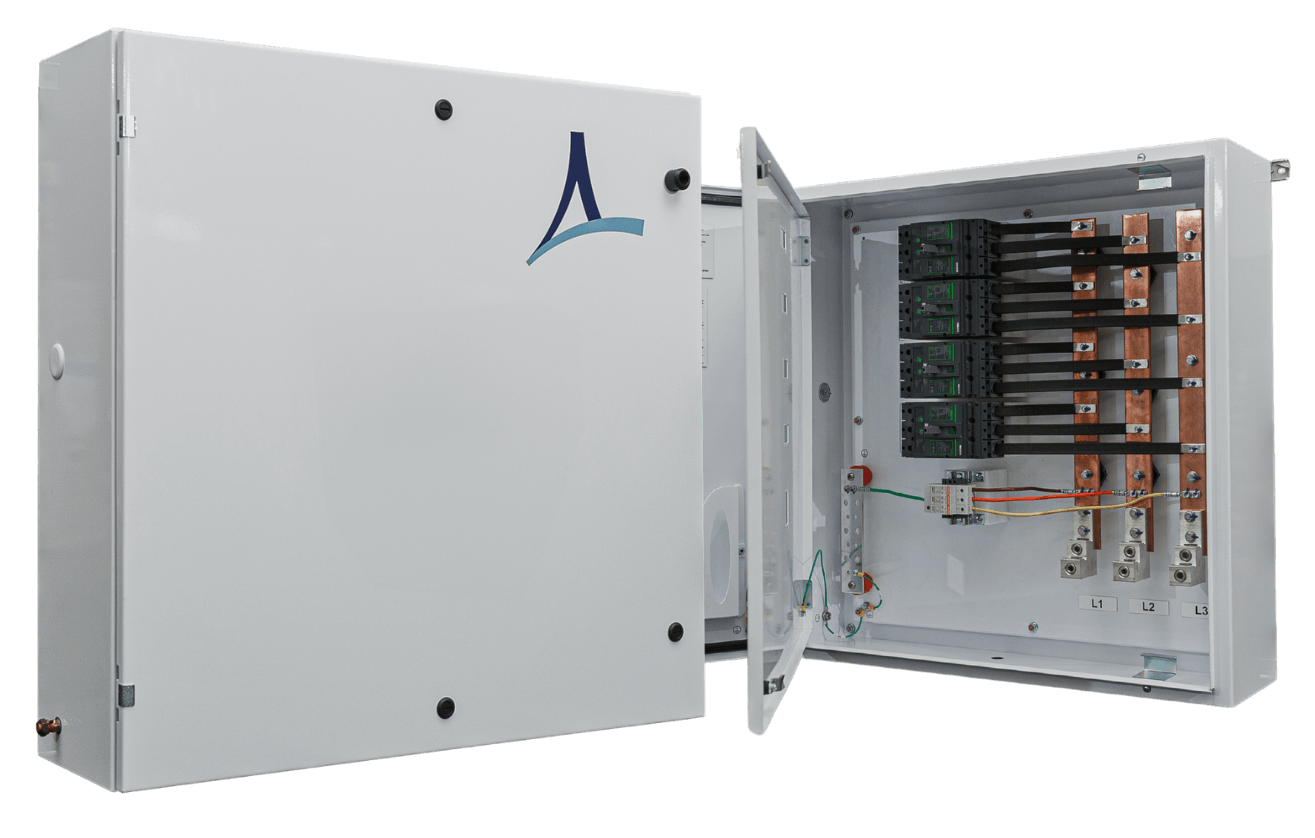

Agilitech AC Combiner Panels provide a clean transition between inverter blocks and downstream equipment such as switchgear, transformers, or power distribution centers. Built for demanding field conditions, each panel is designed to support EPC efficiency, streamline inspections, and reduce installation risk.

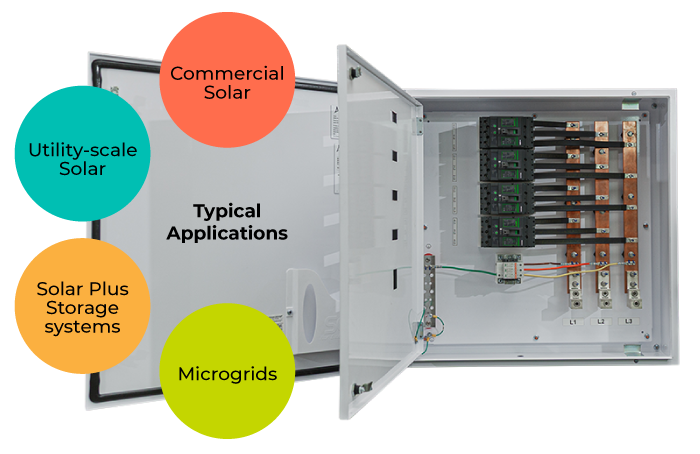

Typical applications include commercial solar, utility-scale solar, solar-plus-storage systems, and microgrids.
Key Benefits
Built for Utility-Grade Performance

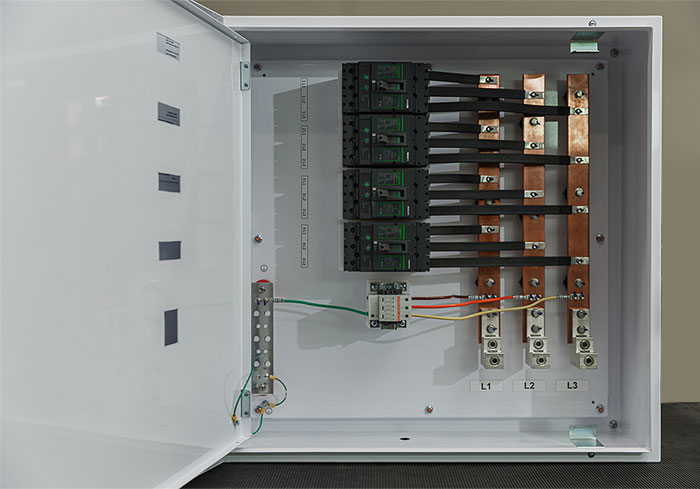

Panels are constructed with high interrupt ratings, robust bus architecture, and NEMA 4 enclosures suitable for outdoor installation in harsh environments.
Configurable for Real-World Projects
Standard ratings are available in 400 A, 600 A, and 800 A configurations, with customization options to align with inverter selection, conductor sizing, and one-line requirements.
Predictable Lead Times
Designed and manufactured in California, Agilitech AC Combiner Panels support typical manufacturing lead times of approximately six weeks from approved submittals, depending on configuration and order volume.
Inspection-Ready by Design
UL 508A certification, clear labeling, and factory quality control support smoother AHJ reviews and reduce field rework.
Technical Specifications
| Model | AGIAC400A | AGIAC600A | AGIAC800A |
|---|---|---|---|
| Input Parameters | |||
| No. of Input Circuits | 4 | 4 | 4 |
| OCPD Type | 100A | 175A | 200A |
| Disconnect | None | None | None | Compatible Inverters | 3-Phase Delta Type | 3-Phase Delta Type | 3-Phase Delta Type |
| Rated Voltage | 480V / 600V | 480V / 600V | 480V / 600V |
| Input Current | ≤ 100A | ≤ 150A | ≤ 200A |
| Input Conductor Size | #6 – 350 MCM CU/AL | #6 – 350 MCM CU/AL | #6 – 350 MCM CU/AL |
| Input Conduit Knockout Size | 2" (trade size) | 2" (trade size) | 2" (trade size) |
| Output Parameters | |||
| Output Conductor Size | #3/0 – 600 MCM CU/AL (1 or 2 sets) | #3/0 – 600 MCM CU/AL (1 or 2 sets) | #3/0 – 600 MCM CU/AL (1 or 2 sets) |
| Output Conduit Knockout Size | 3" (trade size | 3" (trade size | 3" (trade size |
| Interrupting Capacity | 65kA @ 480V / 25kA @ 600V | 65kA @ 480V / 25kA @ 600V | 65kA @ 480V / 25kA @ 600V |
| Output Current Rating | 400A | 600A | 800A |
| Mechanical | |||
| Dimensions (H x W x D in) | 36 x 36 x 10 | 36 x 36 x 10 | 36 x 36 x 10 |
| Weight (lbs) | 200 | 200 | 200 |
| Padlockable enclosure (LOTO) | Yes | Yes | Yes |
| Grounding busbar | Yes | Yes | Yes |
| Breather vent | Yes | Yes | Yes |
| Environment | |||
| Enclosure protection degree | NEMA Type 4 | NEMA Type 4 | NEMA Type 4 |
| Operating temperature range | -30°C to +60°C | -30°C to +60°C | -30°C to +60°C |
| Operating Humidity | 0% – 95% (non-condensing) | 0% – 95% (non-condensing) | 0% – 95% (non-condensing) |
| Operating altitude | 6562 ft (no derating) | 6562 ft (no derating) | 6562 ft (no derating) |
| Safety & Certifications | |||
| Certifications and standards | UL508A | UL508A | UL508A |
| Warranty | |||
| Warranty | 2 Years | 2 Years | 2 Years |
Designed for EPCs, Developers, and Asset Owners
Agilitech AC Combiner Panels are engineered with constructability and lifecycle reliability in mind. Factory-built assemblies reduce on-site labor, support cleaner inspections, and integrate smoothly into project schedules.
As both an EPC and equipment manufacturer, Agilitech brings field-informed design practices that translate into fewer RFIs and more predictable project execution.
Availability & Regional Advantage
Panels are manufactured in California and deployed nationwide. West Coast customers benefit from reduced logistics risk, responsive coordination, and regional familiarity with utility and AHJ expectations.
Your Next Step
Request a Quote
View the Agilitech Privacy Policy.
FAQs
What is an AC combiner panel used for?
An AC combiner panel aggregates AC outputs from multiple inverters into a single feeder, simplifying power distribution and reducing downstream connections in large-scale solar systems.
When is an AC combiner required?
AC combiners are typically used in commercial and utility-scale systems where multiple inverters feed shared downstream infrastructure.
What does “six-week lead time” mean?
Typical lead time refers to the manufacturing period from approved submittals to shipment. Exact timelines depend on configuration and order volume.
Can panels be customized?
Yes. Breaker sizing, conductor ranges, layouts, and other features can be configured to meet project-specific requirements.
